To Give You A Sense Of How Our Acoustical Elements Will Transform Your Space, We Offer The Following Design Deliverables. Choose The Option That Suits Your Needs And Timeline.

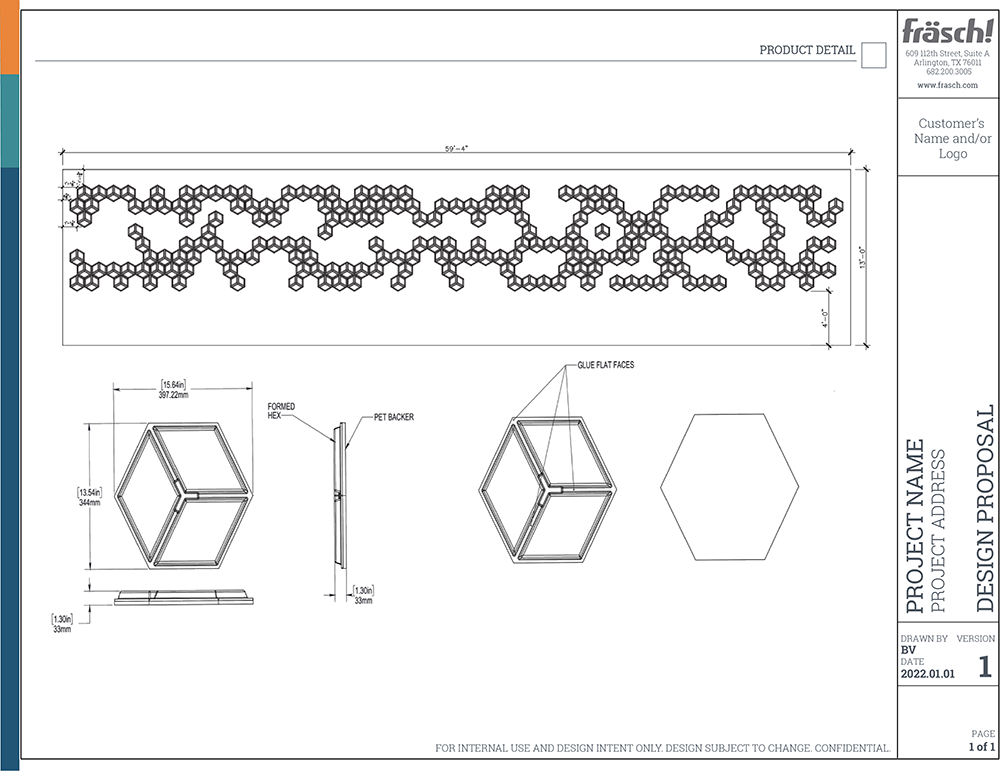

BLACK & WHITE ELEVATION
DRAWING
Production time:
3-5 business days
Deliverables:
Sample layout(s) of requested product in customer’s space dimensions
Black and white line drawings
Product details
COLOR ELEVATION
DRAWING
Production time:
3-5 business days
Deliverables:
Sample layout(s) of requested product in customer’s space dimensions
Color line drawings
Product details

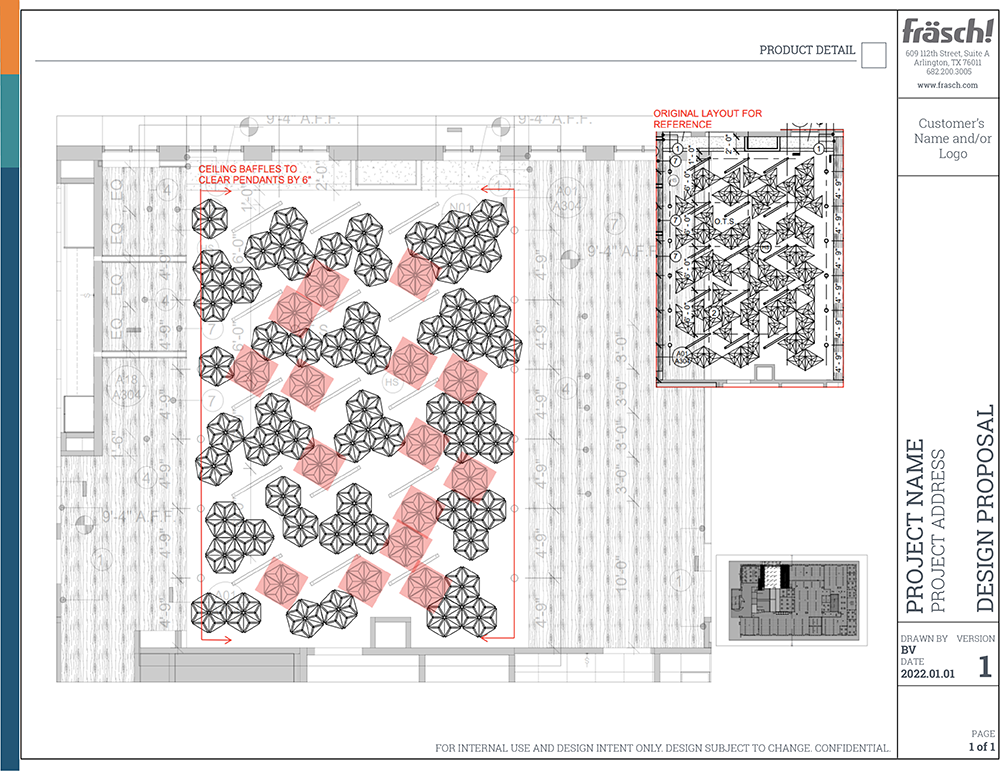

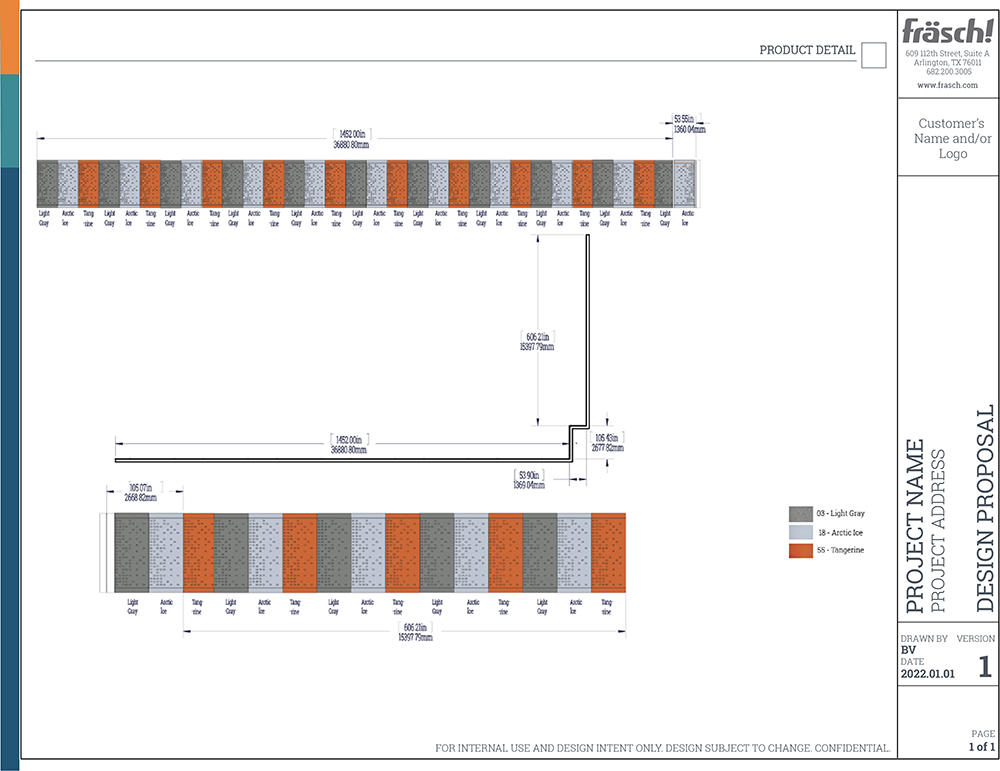

PRODUCT LAYOUT
PLAN VIEW
Production time:
3-5 business days
Deliverables:
Sample layout(s) of requested product in customer provided planned drawings
Product line drawing representation
Product details
Site conditions and obstacles not reflected in drawings. For design purposes only.
Cost:
Design cost may apply, depending on complexity, and will be refunded if an order is placed. Provided on a case-by-case basis by the Fräsch design team.

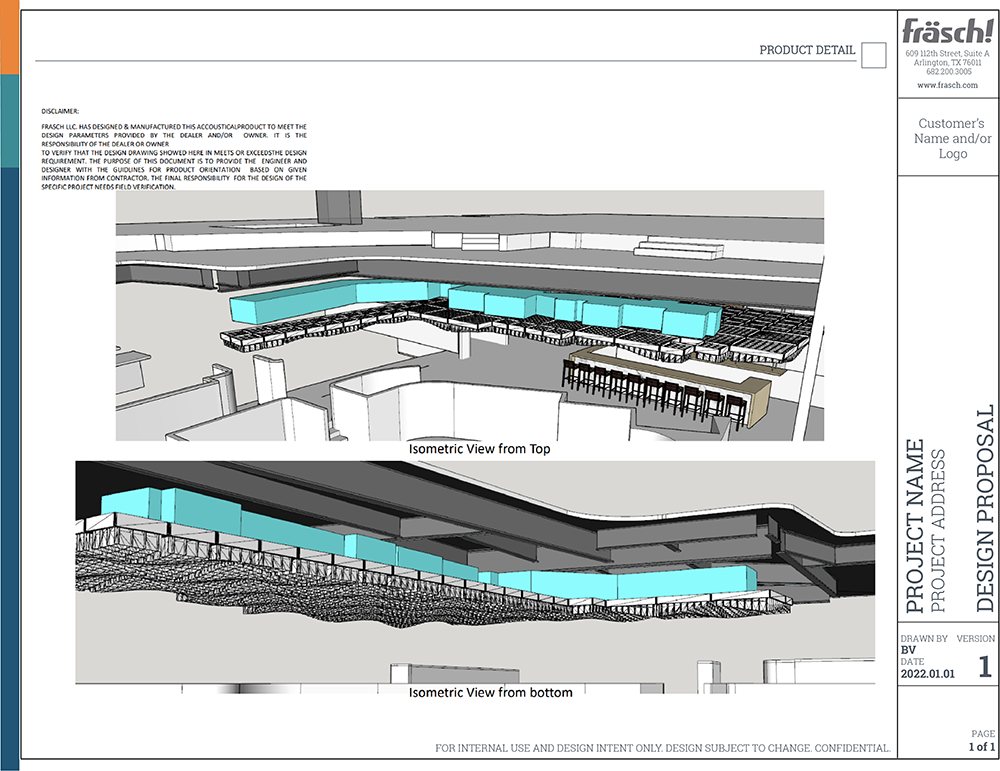

3D ISOMETRIC
PRODUCT VIEW
Production time:
Timing varies, based on complexity. Provided on case-by-case basis by the Fräsch design team.
Deliverables:
Isometric representation of three-dimensional products in a two-dimensional space drawing from several views.*
Product line drawings representation
Product details
*Three-dimensional Auto CAD drawings to be provided by client.
**Site conditions and obstacles not reflected in drawings. For design purposes only.
Cost:
Design cost may apply, depending on complexity, and will be refunded if an order is placed. Provided on a case-by-case basis by the Fräsch design team.

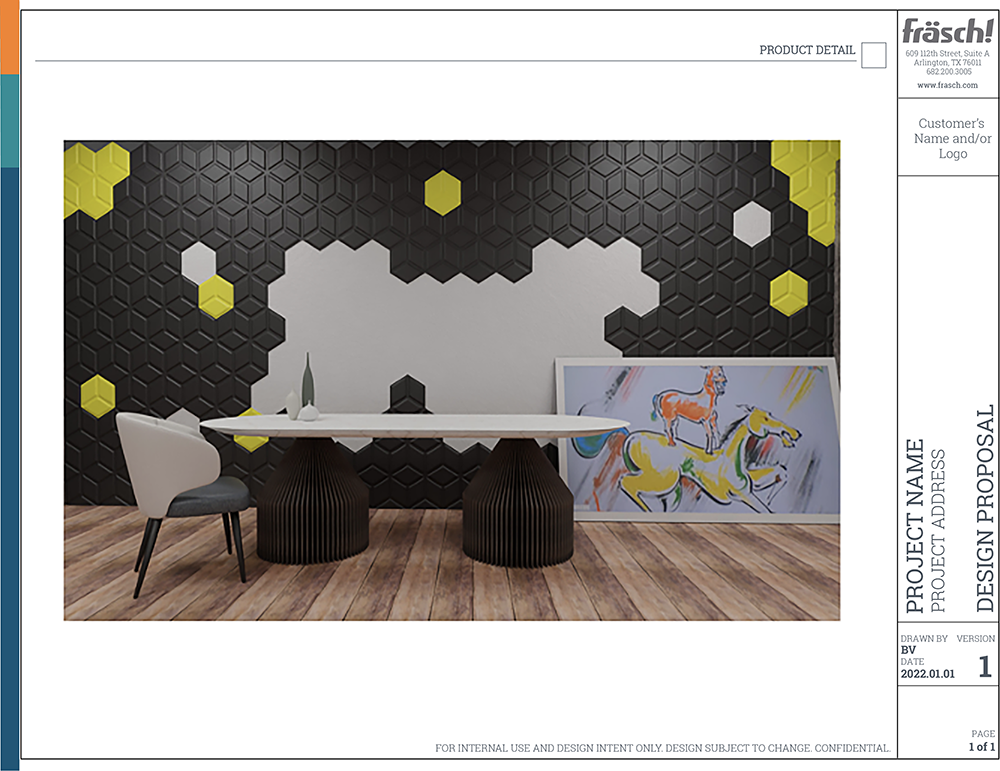

PHOTO-REALISTIC RENDERING
PRODUCT VIEW
Production time:
Timing varies, based on complexity. Provided on case-by-case basis by the Fräsch design team.
Deliverables:
Product application in client provided space drawings with photo realistic treatment to produce approximate visual representation after installation.
Product representation
Product details
**Site conditions and obstacles not reflected in drawings. For design purposes only.
Cost:
Design cost may apply, depending on complexity, and will be refunded if an order is placed. Provided on a case-by-case basis by the Fräsch design team.
