TRI BAFL

Acoustical Triangle Ceiling Baffle

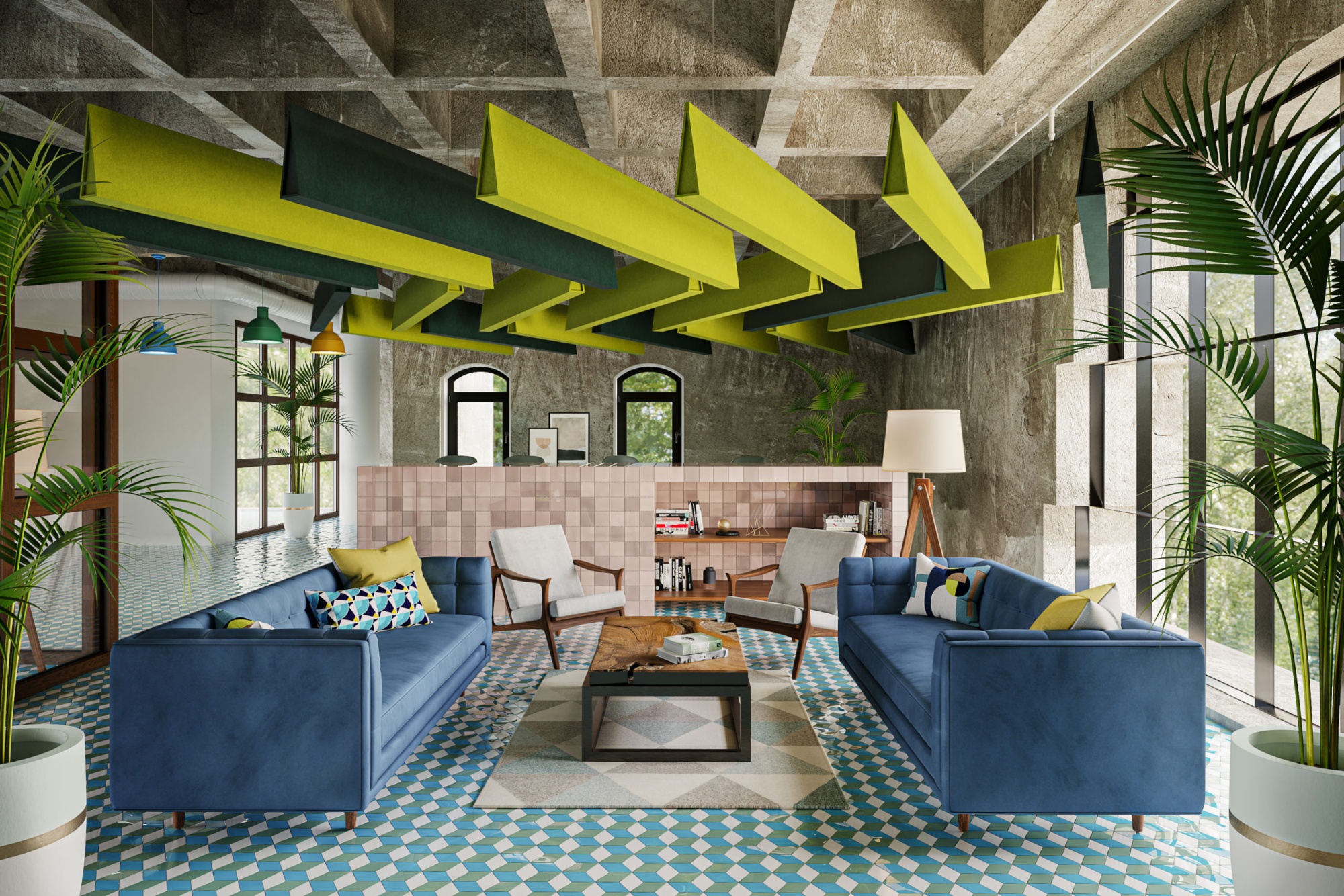

TRI BAFL provides the same exceptional sound performance as our classic baffles in an upgraded, unique design. The triangular geometry presents clean angles that can be positioned in numerous ways, creating a custom aesthetic. Pre-installed brackets and included hardware make for easy installation.

Request A Quote

Get A Color Sample

Installation Made Easy

In just a few easy steps, you can create a unique and elegant acoustical ceiling installation with our line of felt ceiling baffles.

Dimensions

Weight | 2.8lbs, 5.6lbs
Length | 47.25″, 95″
Width | 4″
Height | 14″

Installation

TRI BAFL comes with two perfectly placed and preinstalled 18mm Brackets for easy connectivity and quick install. Griplocks and Aircraft Cable are included. The ceiling fastener is provided by an installer.


Hardware

Default | 18mm Spike Bracket, Griplock, Aircraft Cable/Threaded Rod

Unistrut* | Unistrut, Cone Nut Assembly, Threaded Rod/ Aircraft Cable, Coupler Nut, Griplock

Drop Ceiling* | T-Bar Clip/Magnet, Coupler Nut, Hanger Bolt, Spike Bracket

*available upon request


Material Specifications

Composition

100% Polyethylene Terephthalate (PET)
55% Recycled Content


Sound and Fire Ratings

Sound Absorption | ASTM C423
NRC | 1.10
Fire Rating | ASTM E-84, Class A
CAN/ULC S102 Test | Available Here

Environmental Factors

100% Recyclable
Low VOC Emissions | ASTM D5116
LEED | MRc4
