FACETS

Suspended Acoustic System

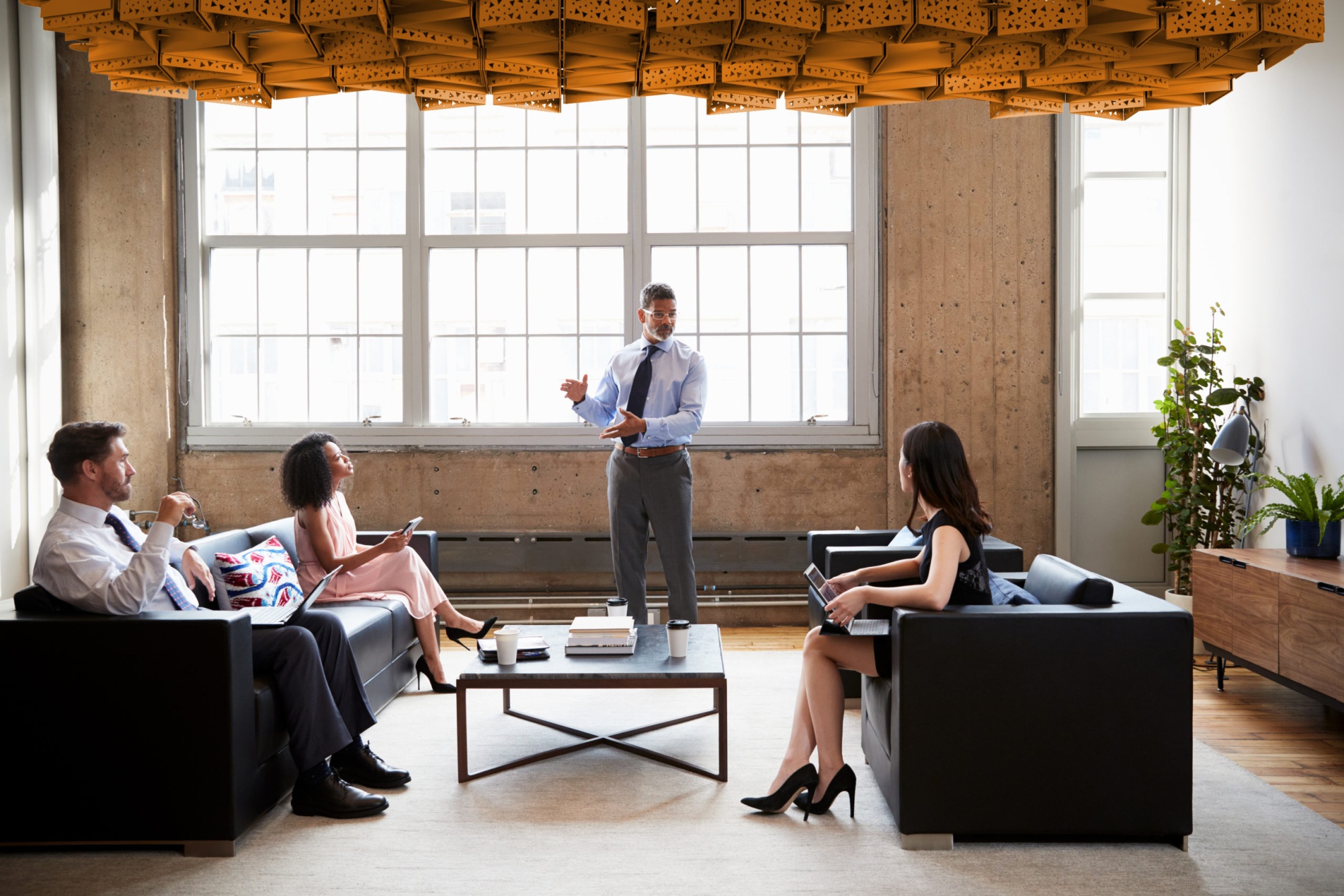

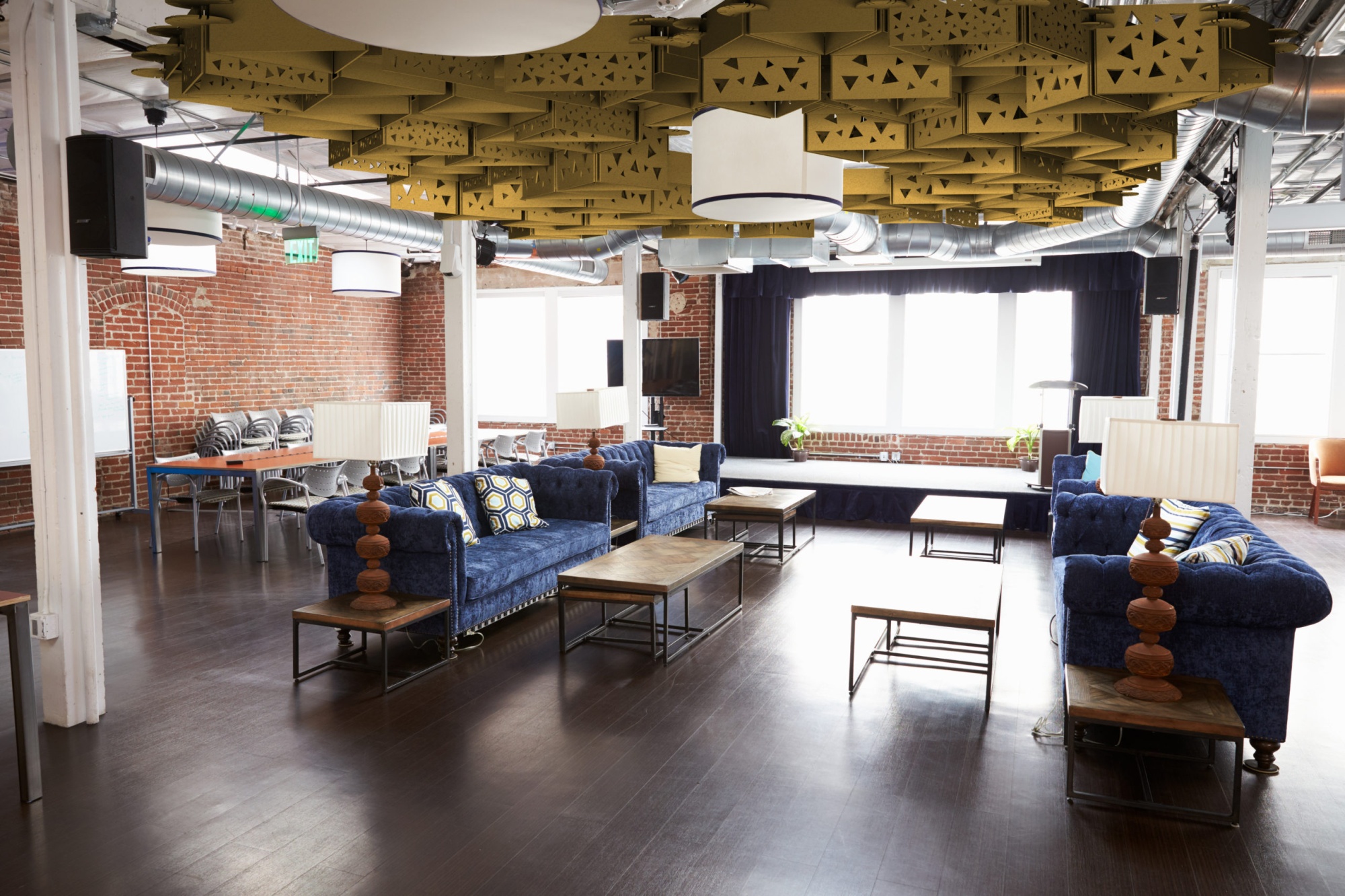

Designed to morph into any space it inhabits like a suspended amoeba, Facets creates stark visual appeal with the organic layout it metamorphoses into.

With the enhanced acoustic performance and progressive modularity to fit virtually any room size, Facets is a suspended acoustic ceiling system which yields much design impact.

Request A Quote

Get A Color Sample

Product Specifications

Product Specifications

Composition | 9mm 100% Polyethylene Terephthalate (PET)
Recycled Content | 55% post-consumer recycled content
Recyclability | 100% Recyclable


Components

SIZE |  71″W x 61″L x 24″H

FACETS – XL |  (3) XL Struts + Hubs
FACETS – L | (3) L Struts + Hubs
FACETS – M | (3) M Struts + Hubs
FACETS – S | (3) S Struts + Hubs

Coverage | Covers approx 23sq feet. One full hexagon can be assembled


Installation

Product is assembled by customer using built in friction slots.


Hardware

Spike bracket, griplock, and aircraft cable mounting method.


Material Specifications

Composition

9mm 100% Polyethylene Terephthalate (PET)
55% post-consumer recycled content


Sound and Fire Ratings

Sound Absorption | ASTM C423-17
NRC | 0.75 (Material)
Fire Rating | ASTM E-84 Class A
CAN/ULC S102 Testing | Available Upon Request

Environmental Factors

VOC Concentration | Low VOC Product
Environmental Product

Dimensions
